Electra Tubelights & Battens
Wattage: 10W | 18W | 20W | 22W
Installation: Easy installation, retrofit replacement of traditional tubes
- Energy efficient LED T8 tube with high efficacy
- Elegantly designed extruded aluminium housing
- With anti glare milky and clear acrylic diffuser
- Glare free and uniform light distribution
- Perfect replacement of T8 fluorescent tubes
- More than 50% energy savings compared to FTL lamps
- Available in cool white, neutral white & warm white CCT
Application

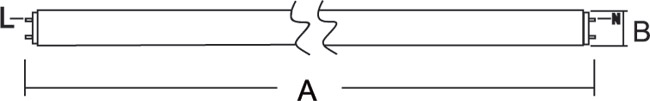

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | |
|---|---|---|---|---|---|---|---|
| A | B | ||||||
| 10W | 220-240 VAC,50Hz | >100lm/W | <15% | >0.95 | >80 | 605 | 26 |
| 18W | 220-240 VAC,50Hz | >100lm/W | <15% | >0.95 | >80 | 1210 | 26 |
| 20W | 220-240 VAC,50Hz | >100lm/W | <15% | >0.95 | >80 | 1210 | 26 |
| 22W | 220-240 VAC,50Hz | >100lm/W | <15% | >0.95 | >80 | 1210 | 26 |
Dimension tolerance:- ± 5mm
