Multi-LED Floodlight With Lens
Wattage: 60W | 70W | 80W | 90W | 100W | 120W | 150W | 160W | 200W | 240W | 250W
Installation: External mounting arrangement through bracket
- Robust housing with epoxy powder coated pressure die casted aluminium
- Ideal heat dissipation with good quality heat sink
- High efficacy & low power consumption
- Wide beam angle & uniform light distribution
- Higher energy savings & environment friendly product
- IP66, High Ingress protection against dust & moisture
- Available in cool white & warm white CCT
Application

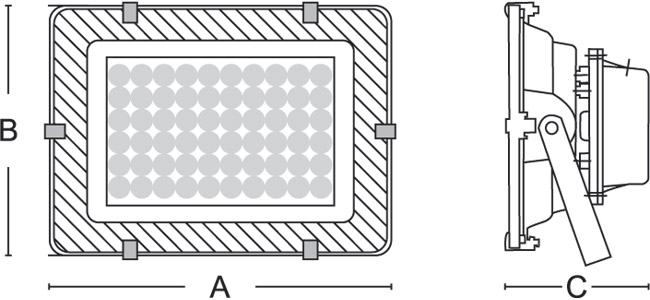

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 60W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 230 | 190 | 130 |
| 70W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 230 | 190 | 130 |
| 80W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 290 | 235 | 145 |
| 90W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 230 | 190 | 130 |
| 100W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 230 | 190 | 130 |
| 120W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 230 | 190 | 130 |
| 150W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 340 | 250 | 145 |
| 160W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 420 | 330 | 150 |
| 200W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 420 | 330 | 150 |
| 240W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 420 | 330 | 150 |
| 250W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 420 | 330 | 150 |
Dimension tolerance:- ± 5mm
