LED Baylight
Wattage: 150W | 200W | 250W | 300W | 350W | 400W | 450W | 500W
Installation: Bracket mounting & tighten the bolts properly through eyebolt.
- Elegantly designed powder coated aluminium extruded housing with PDC end caps
- Ideal heat dissipation with good quality heat sink
- Precise narrow beam and wide beam optics for indoor industrial requirement
- More than 70% energy savings compared to conventional lighting solution
- Bracket or hanging Mounting
- IP66, High Ingress protection against dust & moisture
- Available in Cool White & Warm White CCT
Application

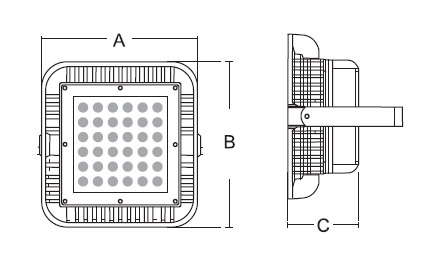

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 80W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 380 | 310 | 185 |
| 90W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 380 | 310 | 185 |
| 100W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 380 | 310 | 185 |
| 120W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 380 | 310 | 185 |
| 150W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 380 | 310 | 185 |
| 200W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 430 | 310 | 185 |
| 250W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 430 | 310 | 185 |
| 300W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 480 | 310 | 185 |
| 350W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 530 | 310 | 185 |
| 400W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 670 | 310 | 185 |
| 500W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 670 | 310 | 185 |
Dimension tolerance:- ± 5mm
