LED Canopy Light
Wattage: 40W | 60W | 80W | 100W
Installation: In false ceiling : By replacing the board through luminaire. Pendant option also available | can easily install through bracket
- Vivid designed of aluminium pressure die cast housing
- Available with weather proof gasket for protecting LEDS
- High luminuous performance & high brightness
- More than 50% energy savings compared to HPSV/MHL luminaires
- Recessed or truss mounting
- IP66, High Ingress protection against dust & moisture
- Available in cool white & warm white CCT
Application

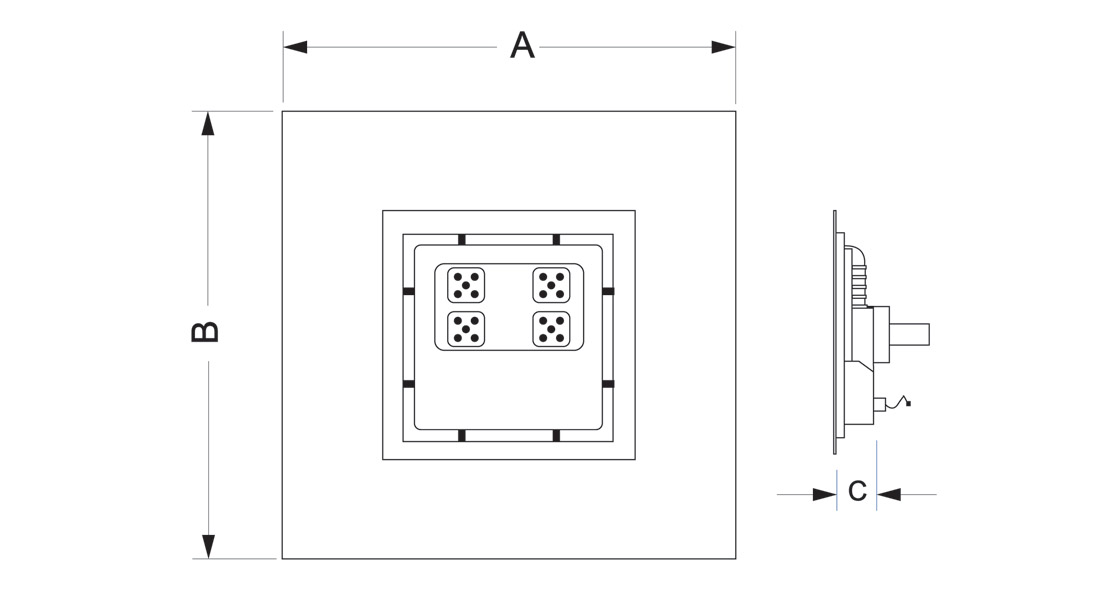

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 40W | 220-240 VAC,50Hz | >100lm/W | <10% | >0.95 | >70 | 370 | 365 | 60 |
| 60W | 220-240 VAC,50Hz | >100lm/W | <10% | >0.95 | >70 | 370 | 365 | 60 |
| 80W | 220-240 VAC,50Hz | >100lm/W | <10% | >0.95 | >70 | 370 | 365 | 60 |
| 100W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 370 | 365 | 60 |
Dimension tolerance:- ± 5mm
