A slim, adaptable lighting solution that elevates cabinets, shelves, ceilings and a variety of interior spaces.

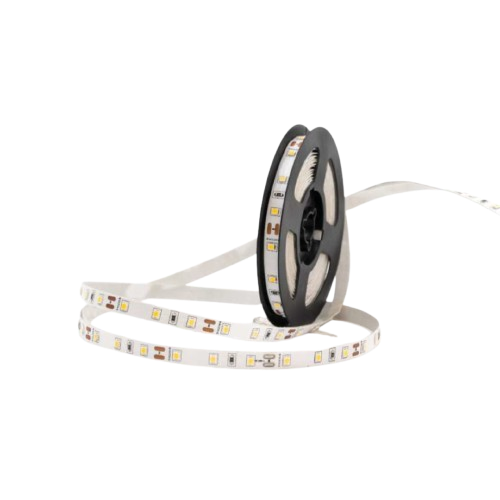

LED STRIP LIGHTS
SL1
Input Voltage (V DC) ±10%/M
System Wattage (At Rated Voltage / m)
Total Lumens/M
Efficacy (Lm/W)
Beam Angle
Product Class (Class I & Class II)
Total Voltage Drop of 5m Strip
CRI
Operating Temperature Range
Rated Life
12V
10W ±10%
750 ±10%
75 lm/W
180°
Class II
≤2V DC
80
-10°C to +45°C
30000BH
12V
12W ±10%
900 ±10%
75 lm/W
180°
Class II
≤2V DC
80
-10°C to +45°C
30000BH
Mechanical Info
Dimension (L × W × H)
Fixing Method
No. of LEDs
5000 × 10 × 1.8 mm
3M Tape
2400 (480 Chips/mtr)
5000 × 10 × 1.8 mm
3M Tape
2400 (480 Chips/mtr)
Features:
• A Long Lifespan
• Energy Efficiency
• No Heat or UV Emission
• Design Flexibility
• Low Voltage Operation
• Cuttable

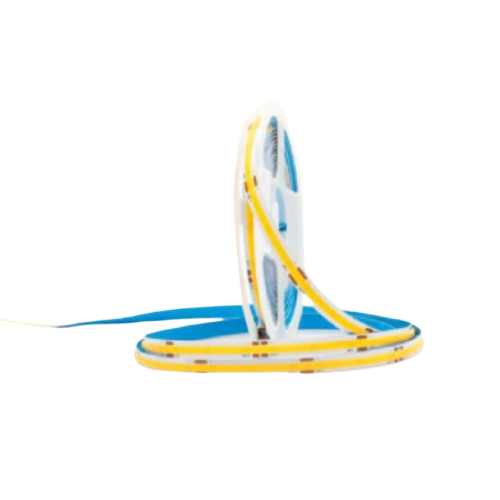

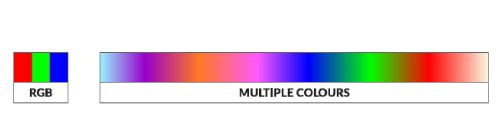

• Multiple Colours in Single COB Strip
• Dotless Light

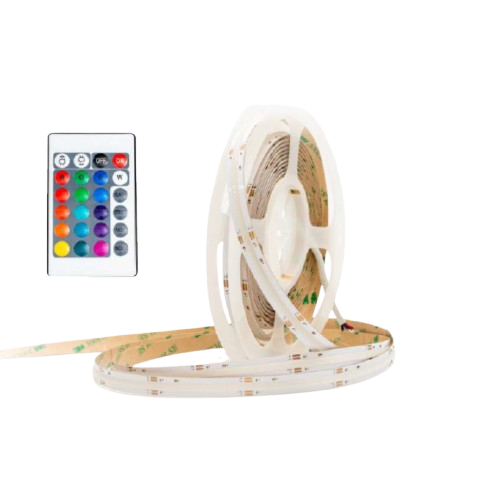

• RF Controlled COB Strip
• Dimmable COB Strip
Mounting: Adhesive Banking
Applications:
Accent Lighting, Coves, Ledges, Shelves, Aluminium Profile, Facade Lights, Festive Décor
SL2
Input Voltage (VDC): 24V
System Wattage (at rated Voltage): 15W ±10%
Beam Angle: 180°
Product Class: Class III
Total Voltage Drop of 5m Strip: ≤2V DC
CRI: 80
Operating Temperature Range: -10°C to +45°C
Rated Life: 30000BH
Dimension (L × W × H): 5000 × 10 × 1.8 mm
Fixing Method: 3M Tape
No. of LEDs: 4200 (840 Chips/mtr)
Mounting: Adhesive Backing
Features:
• A Long Lifespan
• Energy Efficiency
• No Heat or UV Emission
• Design Flexibility
• Low Voltage Operation
• Cuttable
• Multiple Colours in Single COB Strip
• Dotless Light
• RF Controlled COB Strip
• Dimmable COB Strip
Applications:
Accent Lighting, Coves, Ledges, Shelves, Aluminium Profile, Facade Lights, Festive Décor
Warranty: 2 Year
SL3
Input Voltage (V DC ±10%)
System Wattage (at rated voltage)
Total Lumens
Efficacy (Lm/W)
Beam Angle
Product Class (Class I & Class II)
Total Voltage Drop of 5m Strip
LED Type
CRI
Operating Temperature Range
Rated Life
12V
25W ±10%
2000 ±10%
80 lm
120°
Class III
≤2V DC
2835
80
-10°C to +45°C
30000 BH
12V
30W ±10%
2400 ±10%
80 lm
120°
Class III
≤2V DC
2835
80
-10°C to +45°C
30000 BH
24V
25W ±10%
2000 ±10%
80 lm
120°
Class III
≤2.5V DC
2835
80
-10°C to +45°C
30000 Hrs
Mechanical Info
Dimension
Fixing Method
No. of LEDs
No. of LEDs in Single String
No. of Resistors
No. of Resistors in Single String
Series / Parallel Combination
5000 × 8 × 1.2 mm
3M Tape / Silicon Clip
300 (60 LED/mtr)
3
100
1
3S 100P
5000 × 8 × 1.2 mm
3M Tape / Silicon Clip
300 (60 LED/mtr)
3
100
1
3S 100P
5000 × 8 × 1.2 mm
3M Tape / Silicon Clip
300 (60 LED/mtr)
6
100
2
3S 100P
Features:
• A Long Lifespan
• Energy Efficiency
• No Heat or UV Emission
• Design Flexibility
• Low Voltage Operation
• Cuttable LED Strip
Mounting: Adhesive Banking
Applications: Accent Lighting, Coves, Ledges, Shelves, Aluminium Profile, Facade Lights, Festive Décor
Warranty: 2 Year
SL4
Product Available in Length: 5 / 20 / 45 / 50 meter
Input Voltage: AC 220–240V, 50Hz
System Wattage: 7W/mtr
Total Lumens (Per meter): 630 lm/mtr
Efficacy (Lm/W): 90 lm/W
Beam Angle: 120°
Product Class: Class II
LED Type: 2835
CRI: 80
Operating Temperature Range: -10°C to +45°C
Capacity to Withstand Surges: 4KV
Rated Life: 30000BH
Dimension (L × W × H): 5000 × 11 × 5 mm (for 5 meter)
No. of LEDs: 720 (144 LED/mtr)
Series / Parallel Combination: 2P 725P (per meter)
Ingress Protection: IP65
Fixing Method: Clamps
Mounting: Adhesive Backing
Features:
• A Long Lifespan
• Energy Efficiency
• No Heat or UV Emission
• Design Flexibility
• Low Voltage Operation
• Cuttable LED Strip
Applications:
Accent Lighting, Coves, Ledges, Shelves, Aluminium Profile, Facade Lights, Festive Décor
Warranty: 2 Year
Neon Flex Series
Voltage: DC12V / 24V
Power (W): 5 / 12 / 15 (length in meter)
CR (RA): > 90
LED Type: SMD 2835, 120 LED/m or Customized

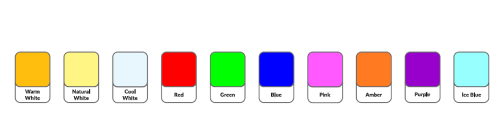

CCT: WW / NW / W, RGB / Y, Full Colour
Aluminum Profile Size: 19mm × 19mm
