Cluster LED Downlighters
Wattage: 6W | 9W | 12W | 15W | 18W | 21W | 24W
Installation: Suitable for recess mounting & easy to install by placing the downlighter in the false ceiling with lifting the mounting clips
- Elegant slim downlighter with high lumen efficacy
- Designed with advanced optics for glare free lighting
- Available shape: Round
- Low power consumption & long life
- Antiglare frosted diffuser for uniform light distribution
- Excellent color rendering index for perceiving great visual experience
- Available in cool white, neutral white & warm white CCT
Application

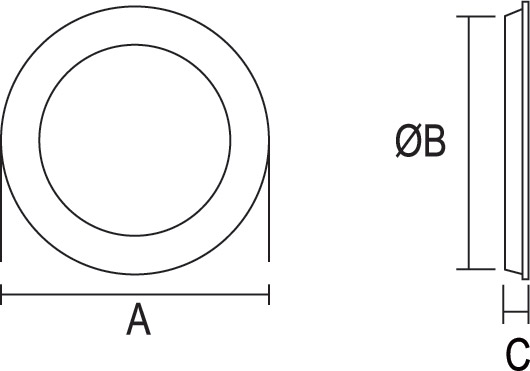

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | ||
|---|---|---|---|---|---|---|---|---|
| A | ØB | C | ||||||
| 6W | 220-240 VAC,50Hz | >90lm/W | <20% | >0.95 | >70 | 120 | 90 | 30 |
| 9W | 220-240 VAC,50Hz | >90lm/W | <20% | >0.95 | >70 | 170 | 140 | 30 |
| 12W | 220-240 VAC,50Hz | >90lm/W | <20% | >0.95 | >70 | 170 | 140 | 30 |
| 15W | 220-240 VAC,50Hz | >90lm/W | <20% | >0.95 | >70 | 170 | 140 | 30 |
| 18W | 220-240 VAC,50Hz | >90lm/W | <20% | >0.95 | >70 | 200 | 170 | 30 |
| 21W | 220-240 VAC,50Hz | >90lm/W | <20% | >0.95 | >70 | 200 | 170 | 30 |
| 24W | 220-240 VAC,50Hz | >90lm/W | <20% | >0.95 | >70 | 200 | 170 | 30 |
Dimension tolerance:- ± 5mm
