Flare Plus T5 Tubelights & Battens
Wattage: 5W | 10W | 12W | 15W | 18W | 20W | 22W
Installation: Easy installation, fix with the help of screws
- Elegant & sleek design with energy efficient LED technology
- Integrated high efficiency driver
- Lower power consumption
- Delivers high brightness & illumination
- Glare free uniform light distribution
- More than 50% energy savings compared to FTL T5 battens
- Available in cool white, neutral white & warm white CCT
Application

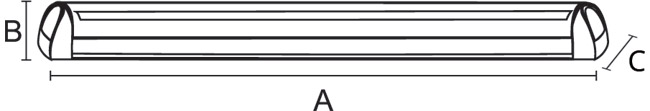

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 5W | 220 -240 VAC,50Hz | >100lm/W | <15% | >0.95 | >80 | 280 | 30 | 25 |
| 10W | 220 -240 VAC,50Hz | >100lm/W | <15% | >0.95 | >80 | 580 | 30 | 25 |
| 12W | 220 -240 VAC,50Hz | >100lm/W | <15% | >0.95 | >80 | 580 | 30 | 25 |
| 15W | 220 -240 VAC,50Hz | >100lm/W | <15% | >0.95 | >80 | 1180 | 30 | 25 |
| 18W | 220 -240 VAC,50Hz | >100lm/W | <15% | >0.95 | >80 | 1180 | 30 | 25 |
| 20W | 220 -240 VAC,50Hz | >100lm/W | <15% | >0.95 | >80 | 1180 | 30 | 25 |
| 22W | 220 -240 VAC,50Hz | >100lm/W | <15% | >0.95 | >80 | 1180 | 30 | 25 |
Dimension tolerance:- ± 5mm
