MOD – Surface LED Downlighters

Wattage: 6W | 8W | 12W | 15W | 18W | 22W

Installation: In True Ceiling : Surface mounting through screws

  • Elegantly designed with ultraslim construction& best quality LEDs
  • Available Shapes: Round | Square
  • Edge lit technology for glare free uniform distribution of light
  • Longer life
  • More than 70% energy savings compared to conventional lighting solution
  • Excellent color rendering index for perceiving great visual experience
  • Available in cool white, neutral white & warm white CCT
Enquire NowDownload Catalogue

Application

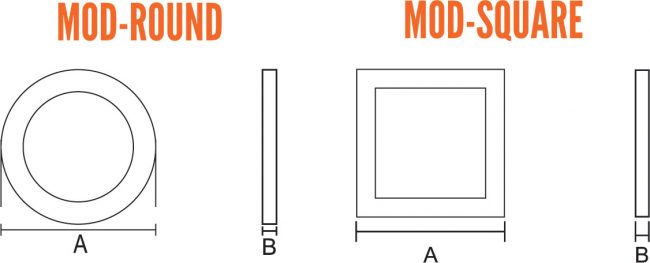

PRODUCT DRAWING



TECHNICAL SPECIFICATIONS



WATTAGE RATED VOLTAGE LUMEN EFFICACY THD PF CRI DIMENSION (mm)
A B
6W 220-240 VAC,50Hz >80lm/W <20% >0.95 >80 120 35
8W 220-240 VAC,50Hz >80lm/W <20% >0.95 >80 120 35
12W 220-240 VAC,50Hz >80lm/W <20% >0.95 >80 175 35
15W 220-240 VAC,50Hz >80lm/W <20% >0.95 >80 190 35
18W 220-240 VAC,50Hz >80lm/W <20% >0.95 >80 225 35
22W 220-240 VAC,50Hz >80lm/W <20% >0.95 >80 225 35

Dimension tolerance:- ± 5mm
