LED Flood Light

Wattage: 250W | 270W | 300W | 350W | 400W

Installation: External mounting arrangement through bracket

  • Vivid designed of aluminium pressure die cast housing
  • Elegant design and driver is encapsulated in the housing
  • High efficacy & low power consumption
  • More than 50% energy savings compared to HPSV/MHL Luminaires
  • Installer friendly and reduced cost of ownership
  • IP66, High Ingress protection against dust & moisture
  • Available in cool white & warm white CCT

Application

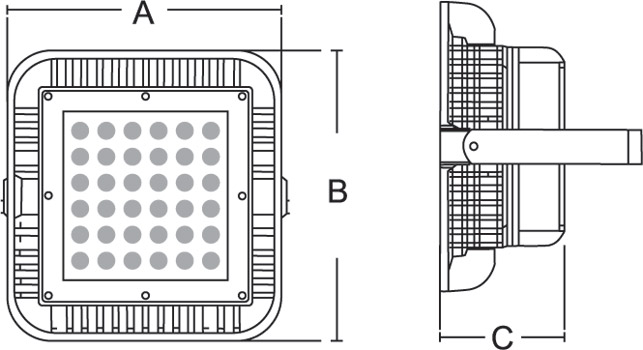

PRODUCT DRAWING



TECHNICAL SPECIFICATIONS



WATTAGE RATED VOLTAGE LUMEN EFFICACY THD PF CRI DIMENSION (mm)
A B C
250W 220 -240 VAC,50Hz >90 lm/W <10% >0.95 >70 345 325 145
270W 220 -240 VAC,50Hz >90 lm/W <10% >0.95 >70 440 420 145
300W 220 -240 VAC,50Hz >90 lm/W <10% >0.95 >70 440 420 145
350W 220 -240 VAC,50Hz >90 lm/W <10% >0.95 >70 440 420 145
400w 220 -240 VAC,50Hz >90 lm/W <10% >0.95 >70 440 420 145

Dimension tolerance:- ± 5mm
