LED Baylight
Wattage: 80W | 90W | 100W | 120W | 150W | 200W
Installation: Easy to install by placing the fixture on hook & tighten the bolts properly through eyebolt. Bracket mounting also available.
- Elegantly designed powder coated aluminium pressure die housing in round shape
- Ideal heat dissipation with good quality heat sink
- precise illumination goods for industrial environment
- More than 50% energy savings compared to conventional lighting solution hanging or bracket mounting
- IP66, High Ingress protection against dust & moisture
- Available in Cool White & Warm White CCT
Application

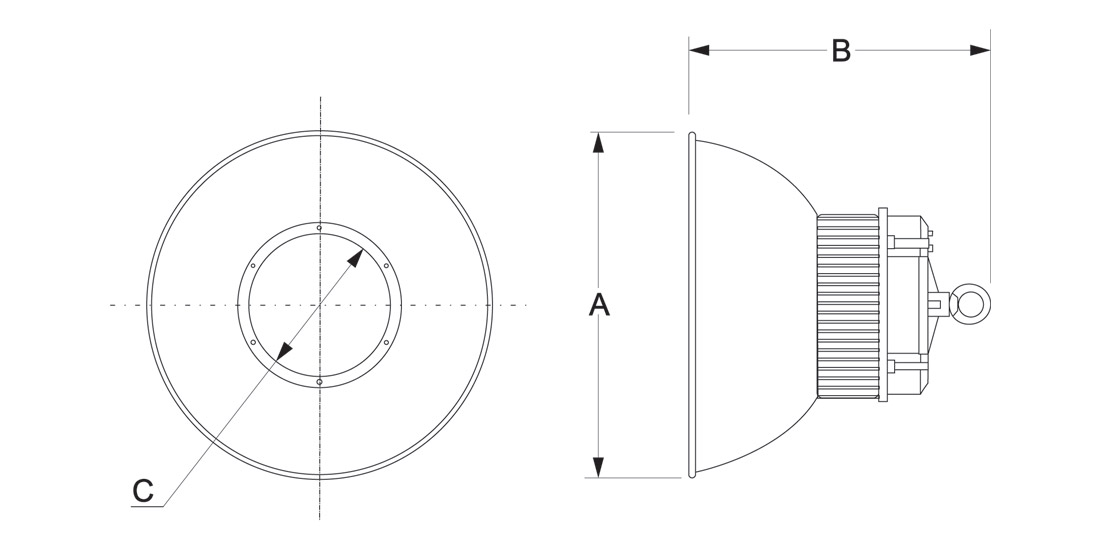

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 100W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 490 | 420 | 200 |
| 150W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 490 | 420 | 200 |
| 200W | 220-240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 490 | 420 | 200 |
Dimension tolerance:- ± 5mm
