LED Well Glass

Wattage: 36W | 40W | 45W

Installation: Easy to install by placing the fixture on hook & tighten the bolts properly through eyebolt. Bracket mounting also available.

  • Stylish designed powder coated aluminium pressure die cast housing
  • Ideal designed for rough industry environment
  • High brightness with uniform light distribution
  • More than 65% energy savings compared to conventional lighting solution
  • Multiple Mounting including: Bracket & Hanging
  • IP66, High Ingress protection against dust & moisture
  • Available in cool white & warm white CCT

Application

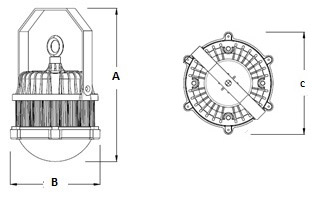

PRODUCT DRAWING



TECHNICAL SPECIFICATIONS



WATTAGE RATED VOLTAGE LUMEN EFFICACY THD PF CRI DIMENSION (mm)
A B C
36W 220-240 VAC,50Hz >100 lm/W <10% >0.95 >70 270 145 165
40W 220-240 VAC,50Hz >100 lm/W <10% >0.95 >70 270 145 165
45W 220-240 VAC,50Hz >100 lm/W <10% >0.95 >70 270 145 165

Dimension tolerance:- ± 5mm
