LED Ground Burial Light
Wattage: 6W | 10W
- Elegantly designed epoxy powder coated Aluminum pressure die casting
- Ideal designed for rough outdoor environment and offer consistency in performance with unique design ensure uniform distribution of light on outdoor environment
- More than 40% energy savings compared to conventional lighting solution
- Burial Mounting
- IP67, High Ingress protection against dust & moisture
- Available in cool white & warm white CCT
Application

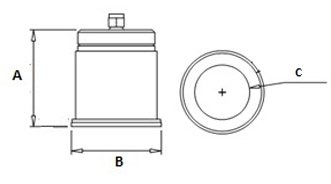

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 6W | 220 -240 VAC,50Hz | >80lm/W | <10% | >0.95 | >70 | 79 | 73 | 48 |
| 10W | 220 -240 VAC,50Hz | >80lm/W | <10% | >0.95 | >70 | 79 | 73 | 48 |
Dimension tolerance:- ± 5mm
