LED Post Top Lantern
Wattage: 25W | 30W | 40W | 45W | 60W | 70W
- Elegant and conical aesthetic pleasing design with powder coated finish using high heat conductivity material which increases heat dissipation speed
- High luminous efficacy and good downward symmetrical light distribution
- More than 65% energy savings compared to conventional lighting solution
- Mounting: On Pole
- IP65, High Ingress protection against dust & moisture
- Available in Cool White & CCT
Application

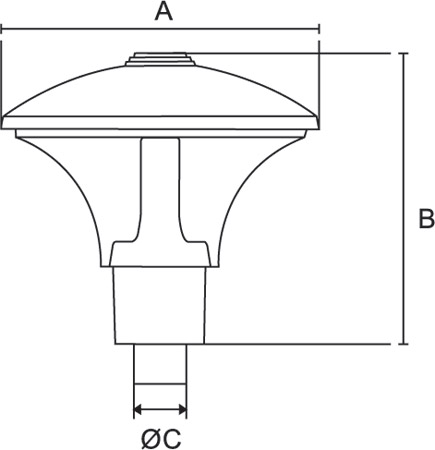

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 35W | 220 -240 VAC,50Hz | >90 lm/W | <10% | >0.95 | >70 | 420 | 330 | 90 |
| 40W | 220 -240 VAC,50Hz | >90 lm/W | <10% | >0.95 | >70 | 420 | 330 | 90 |
| 45W | 220 -240 VAC,50Hz | >90 lm/W | <10% | >0.95 | >70 | 420 | 330 | 90 |
Dimension tolerance:- ± 5mm
