Lumos-LED Street Light
Wattage: 9W |12W | 15W | 20W | 25W | 30W | 36W | 45W | 60W | 72W | 90W | 120W | 150W | 160W
Installation: Pole side-mounting with bracket arm, mounting height should be taken as per designer advice
- Elegantly designed powder coated aluminium pressure die casting housing
- Highly efficient, reliable with high luminous efficacy
- Glare free uniform light distribution
- More than 70% energy savings compared to HPSV/MHL luminaires
- IP66, High Ingress protection against dust & moisture
- Excellent thermal management – Ideal heat dissipation with good quality heat sink
- Available in cool white & warm white CCT
Application

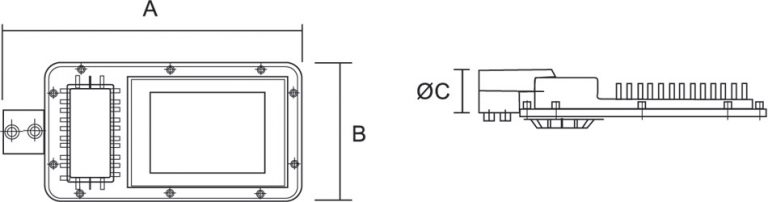

PRODUCT DRAWING
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (MM) | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 9W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 350 | 110 | 40 |
| 12W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 350 | 110 | 40 |
| 15W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 350 | 110 | 40 |
| 20W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 350 | 110 | 40 |
| 25W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 350 | 110 | 40 |
| 30W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 350 | 110 | 40 |
| 36W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 376 | 148 | 40 |
| 45W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 376 | 148 | 40 |
| 60W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 435 | 205 | 50 |
| 72W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 435 | 205 | 50 |
| 90W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 435 | 205 | 50 |
| 120W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 515 | 260 | 50 |
| 150W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 515 | 260 | 50 |
| 160W | 220 -240 VAC,50Hz | >100 lm/W | <10% | >0.95 | >70 | 515 | 260 | 50 |
Dimension tolerance:- ± 5mm
