Up-Down LED Linear Lights
Wattage: 55W
Installation: Pendant mounting through suspension wires provided with fixture
- Duly powder coated CRCA housing with poly carbonate diffuser
- Up & down litup feature that ensures omni directional uniform distribution
- Longer life & low power consumption
- More than 70% energy savings compared to conventional lighting solution
- IP30
- Mounting : Pendant
- Available in Cool White, Neutral White & warm white CCT
Application

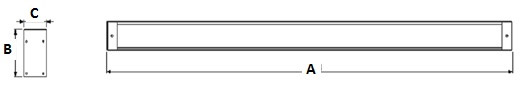

PRODUCT DRAWING
TECHNICAL SPECIFICATIONS
| WATTAGE | RATED VOLTAGE | LUMEN EFFICACY | THD | PF | CRI | DIMENSION (mm) | ||
|---|---|---|---|---|---|---|---|---|
| A | B | C | ||||||
| 55W (15W up + 40W down) | 220 -240 VAC,50Hz | >80lm/W | <15% | >0.95 | >80 | 1210 | 110 | 70 |
Dimension tolerance:- ± 5mm
